Devil's Eyes PCBA
(Mainboard + Display)
Introduction
This is an electronic display for vehicle decoration and modification, also known as "Devil's Eyes" or "Electronic Sharingan". It is mainly used to decorate car lights, motorcycle lights and electric bicycle lights.
Function Introduction
Comprehensive features designed for flexible and convenient operation in various vehicle environments
Display Modes

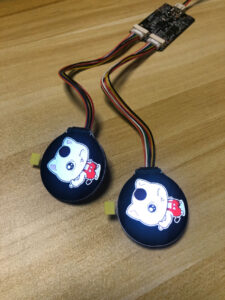

Supports dual-display and single-display modes
Image Switching
Allows switching displayed images via physical buttons

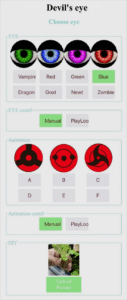

Wireless Control
Features WIFI-AP function for connection with mobile devices
Network Connectivity
Supports router connection for extended functionality
Quick Startup
2-second quick startup for instant operation
Custom Content
Supports custom upload of images, photos and GIF animations
Built-in Patterns
Built-in 8 eye patterns + 6 Sharingan patterns (customizable for more)
Display Specifications
1.28-inch HD circular display with 240*240 resolution
Connections
Equipped with a self-locking connector to effectively prevent poor interface contact; Reserved 2812 colored light interface
Product Performance
Technical specifications ensuring reliable operation in various conditions
Power Input
DC5V~DC24V INPUT
Operating Current
<100mA
Operating Temperature
-25℃ ~ +80℃
Chip Frequency
240MHz
Customization Options
Tailor the product to your specific requirements with these customization options
-
Circuit board size
-
Image customization
-
Web content adjustments
-
Added ambient light strip control output
-
Power supply voltage upgraded to 60V

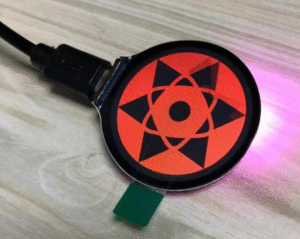

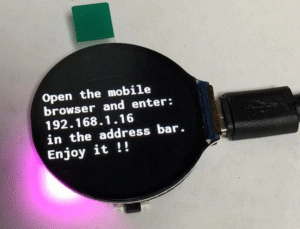

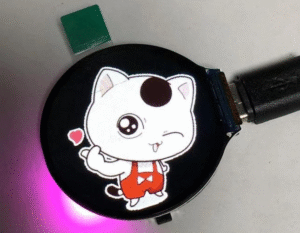

Product Gallery
